Thinking about getting an EV charger installed at home in Box Hill North? You’re not alone. More and more locals are making the switch to electric, and home charging just makes life easier.

On average, EV charger installation costs between $1,200 and $3,500, which includes the charger itself and professional installation. Permit fees are usually additional. If you live in an older home, you might also need electrical upgrades like a new switchboard or even some rewiring.

The type of power supply you have also plays a role. A single-phase system is more common and more affordable. A three-phase setup costs more but allows for faster charging, which is handy if you’ve got multiple vehicles or drive often.

Let’s take a closer look at the costs and options available in Box Hill, Balwyn, Mont Albert, and surrounding areas.

EV Charger Types and Their Costs

There are two main types of chargers to choose from: portable chargers and wall-mounted chargers. Here’s what you need to know about each.

Portable EV Charger (Type 1)

Cost: $400 to $800
Charging Speed: Slow (2 to 3 kW)
Best for: Emergency use, travel, or occasional top-ups
Pros: Affordable, flexible, plugs into a standard 240V outlet
Cons: Not weatherproof, not ideal for daily charging

Wall-Mounted EV Charger (Type 2)

Cost: $1,200 to $2,500
Charging Speed: Fast (7 kW for single-phase, up to 22 kW for three-phase)
Best for: Regular overnight charging at home
Pros: Smart features, solar-ready, faster and safer charging
Cons: Higher upfront cost, requires professional installation

Portable chargers are handy as a backup, but most people around Box Hill go for the wall-mounted Type 2 option. It’s the best long-term solution for regular home charging.

You can choose between 7kW and 22kW, depending on the type of power supply you have. Here’s our informative guide on single versus three-phase power.

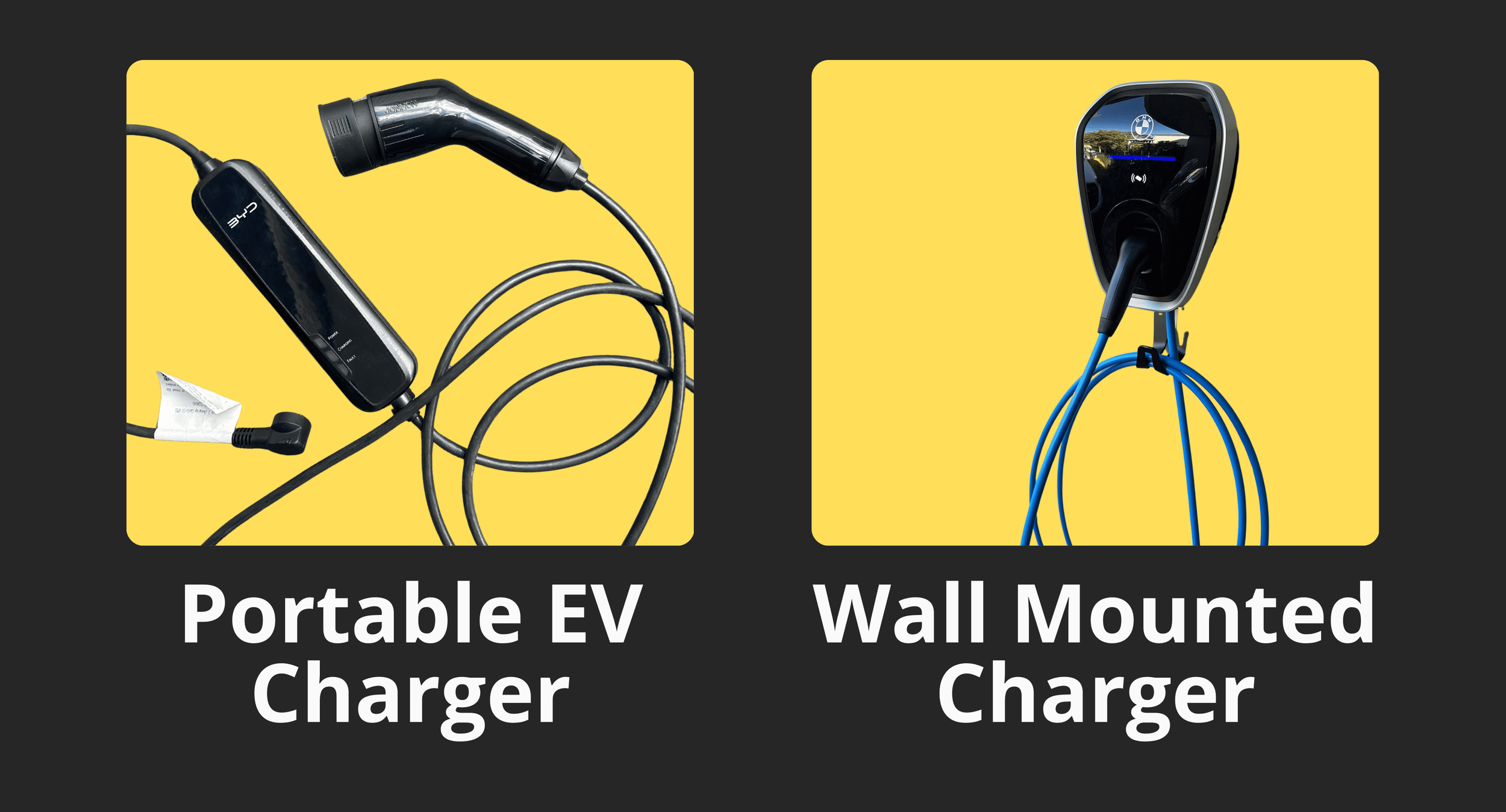

Portable EV charger example” and “Wall-mounted EV charger example

Recommended EV Charger Brands

Here are some popular chargers that our customers in Box Hill often choose:

Tesla Wall Connector

Works best with Tesla vehicles but is compatible with most EVs that use a Type 2 port
Available in both 7kW and 22kW models

Zappi

Ideal for homes with solar panels
Comes in both 7kW and 22kW options
More expensive upfront, but offers energy savings over time

Wallbox

Known for its compact design and smart features
Includes app-based controls, load balancing, and energy tracking

Should You Go With a 32-Amp Socket or a Hardwired Charger?

This is a common question, especially for those looking for flexibility or working with a tighter budget.

32-Amp Socket

Lower cost to install
Lets you plug in a compatible cable and take it with you when needed
Useful for renters or people who move often
Less weather-resistant and higher risk of loose connections

Hardwired Charger

Permanently installed into your switchboard
More expensive to install
Offers better weatherproofing, safety, and advanced features
Cleaner look, no plug fuss

We generally recommend a hardwired charger if you're staying in your home long-term. But for renters or frequent movers, a 32-amp socket might make more sense.

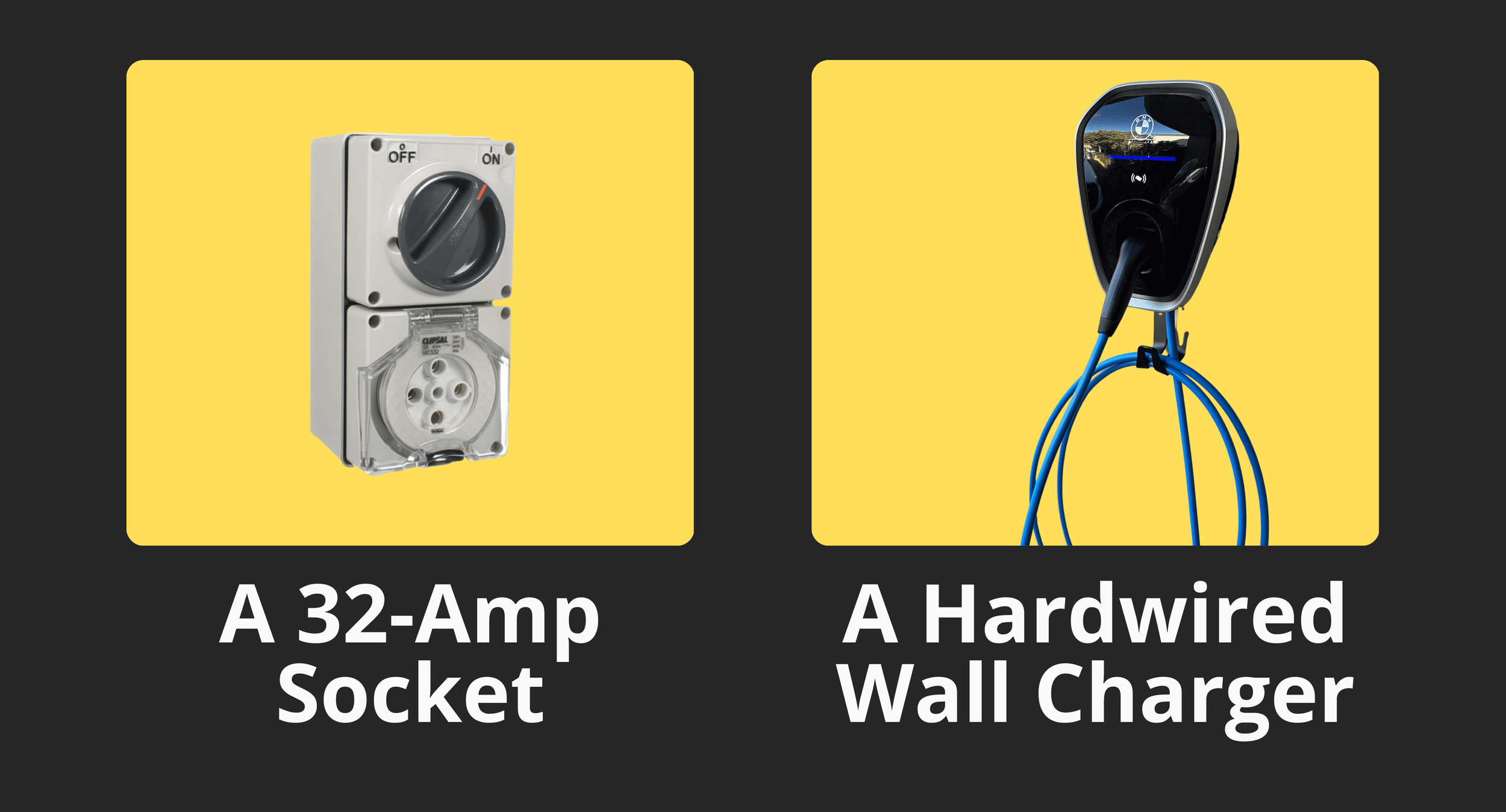

“32 amp EV socket” and “Hardwired EV wall charger”

Cost to Install a 32-Amp Socket or 240V Outlet

Installing a 32-amp socket usually costs between $500 and $1,200. The final price depends on a few things, including:

Type of socket (standard or weatherproof)
How far it is from your switchboard
Whether any upgrades or rewiring are needed
Overall complexity of the installation

Can I Install an EV Charger Myself?

The short answer is no. In Australia, EV chargers must be installed by a licensed electrician.

DIY installation not only puts your safety at risk, but it also voids your insurance and the charger’s warranty. Plus, you need a Certificate of Electrical Safety, which only a licensed pro can issue.

At AJD Electrical, we follow all Australian standards and provide the proper certification so you know your system is safe and compliant. Read more about our EV charger installation services in Box Hill for more details.

What Factors Affect EV Charger Installation Cost?

Every home is a bit different, so the final cost can vary depending on these key things:

Distance from the Switchboard

Longer cable runs mean more labour and materials. If cables need to go through walls, ceilings, or even underground, that adds to the price.

Switchboard or Electrical Upgrades

Older switchboards may not support the extra load of a charger. You might need an upgrade or extra safety components like circuit breakers or RCDs.

Installation Complexity

Tight or unusual spaces take more time and effort. If the charger’s going outside, we’ll also need to factor in weatherproofing and possibly extra protection.

Charger Brand and Features

Smart chargers with WiFi, apps, energy tracking, or voice controls cost more than basic models. It all comes down to what features matter most to you.

Labour Only vs Full Supply and Install

If you already have a charger, we’re happy to do a labour-only install. Need help choosing the right one? We're happy to guide you through the options and supply a charger that suits your home and vehicle setup.

No Garage? No Problem

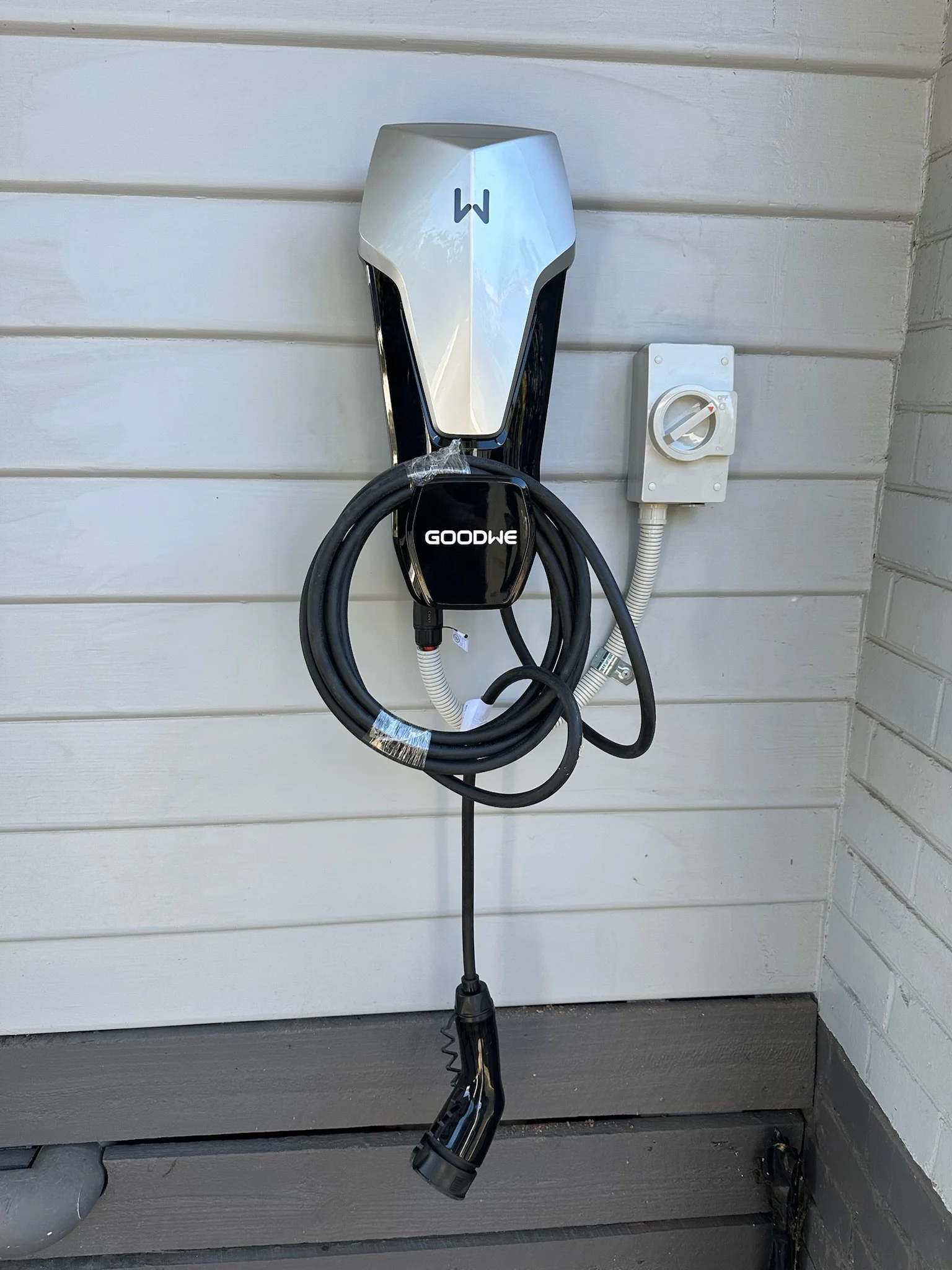

You don’t need a garage to install an EV charger. We’ve fitted plenty of weatherproof chargers to exterior walls, fences, and carports across Box Hill and nearby areas.

Many models are designed for the outdoors and even come with lockable ports to prevent theft. Rain or shine, your EV charger will keep doing its job.

Why More Box Hill Residents Are Installing EV Chargers at Home

Charging at home is just easier. You pull into the driveway, plug in, and by morning your car’s good to go.

Other benefits include:

Lower charging costs, especially during off-peak hours
Faster charging compared to public power points
Better for your EV’s battery life
Adds value to your home

Once you experience the convenience of home charging, you won’t want to go back.

How Much Does It Cost to Charge an EV in Melbourne?

Electricity rates in Melbourne average around 24.2 cents per kilowatt-hour. That means it usually costs between $15 and $25 to fully charge your EV at home.

Public fast charging is more expensive. DC chargers can cost up to 70 cents per kWh, so regular home charging could save you a lot in the long run.

Local EV Charger Installers in Box Hill North

Looking for a trusted local electrician to install your EV charger? AJD Electrical has been serving homes across Box Hill North and surrounding suburbs for over 10 years.

Whether it’s a basic install or a more complex job in an older property or apartment, we’ve got the experience to get it done right.

Give us a call for a free consultation or quote. We’re happy to answer your questions and help you find the best setup for your home.
